Alliance Q9 Advanced
Fully customizable Chemidoc imaging platform

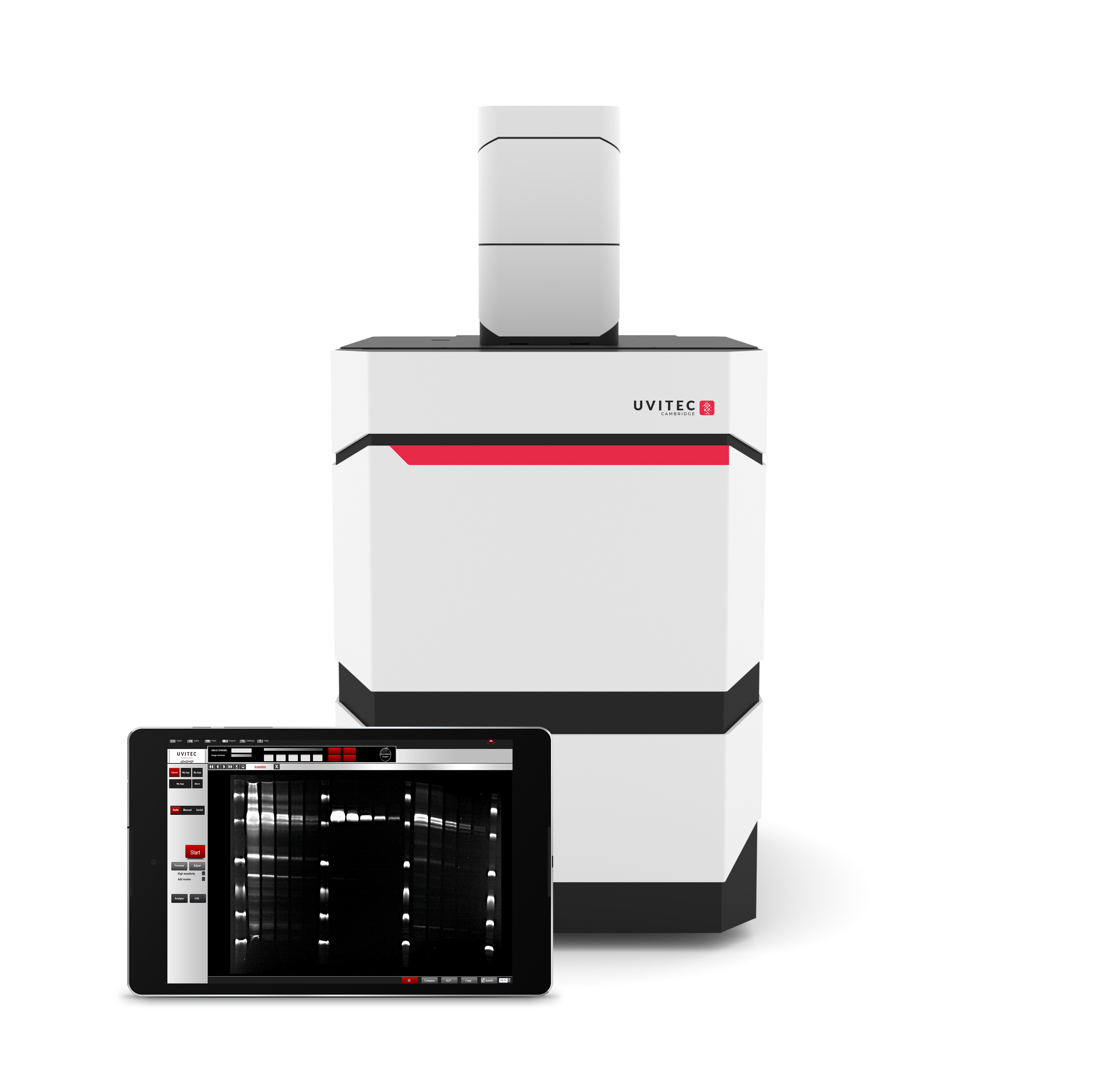

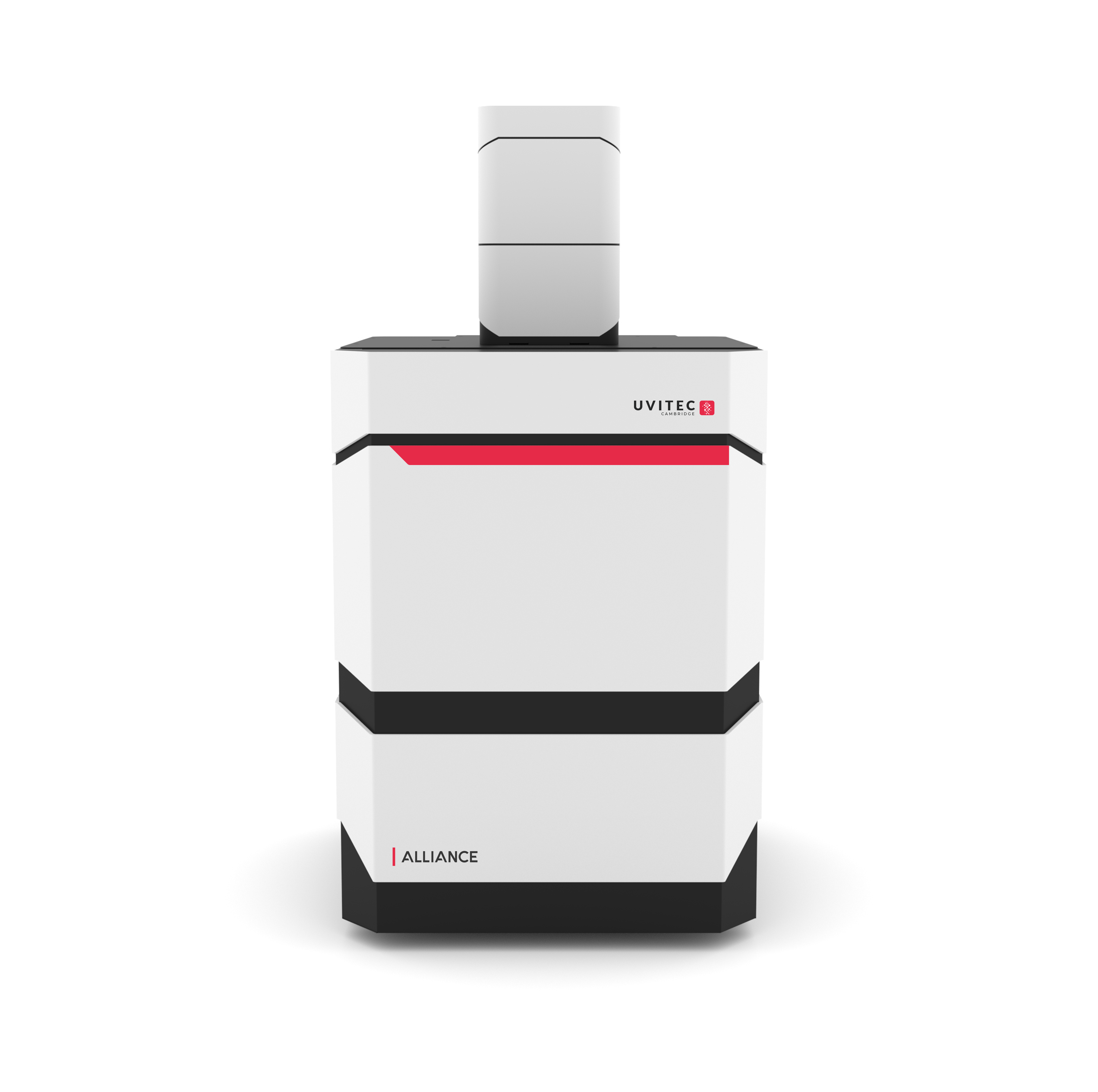

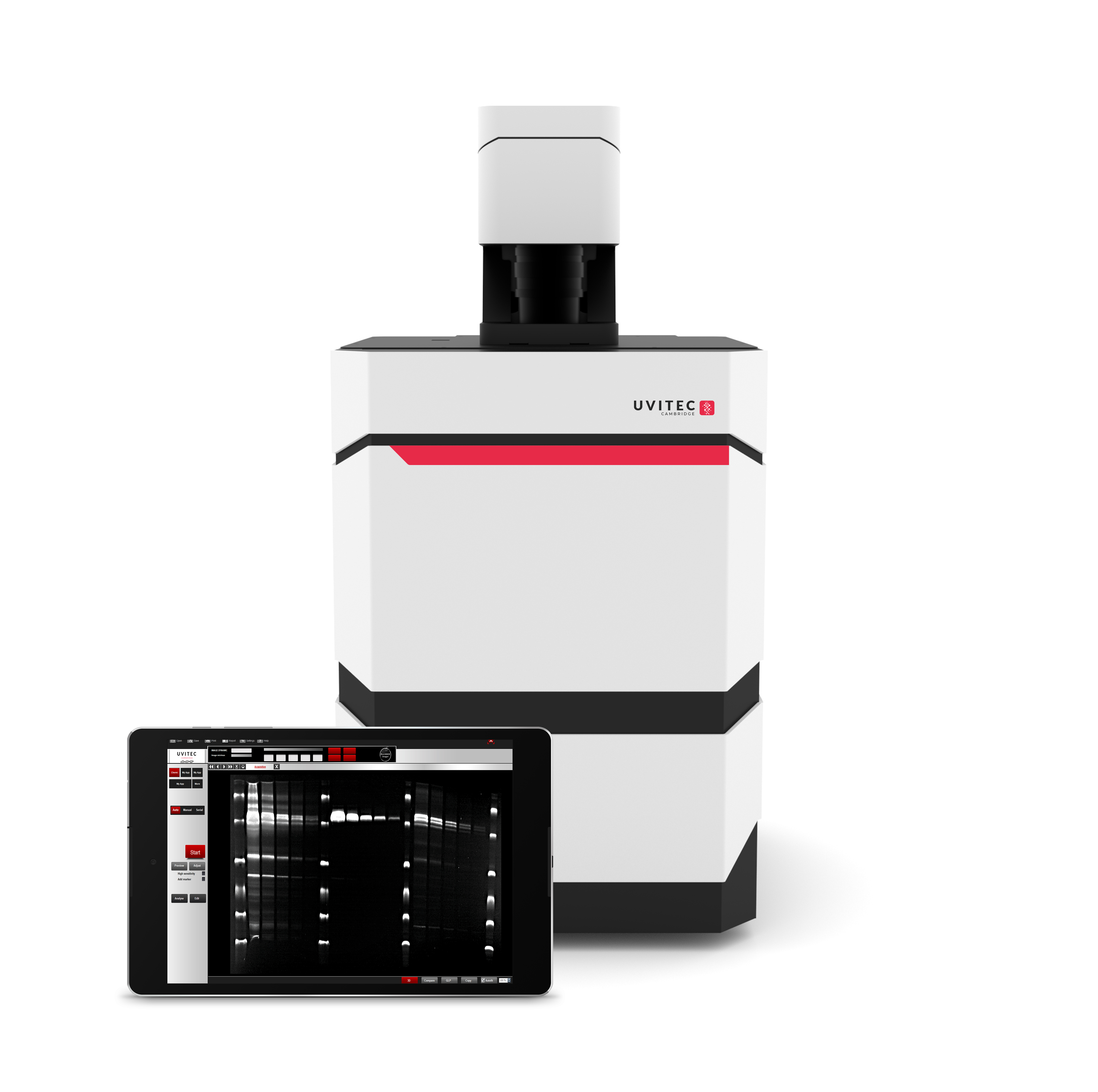

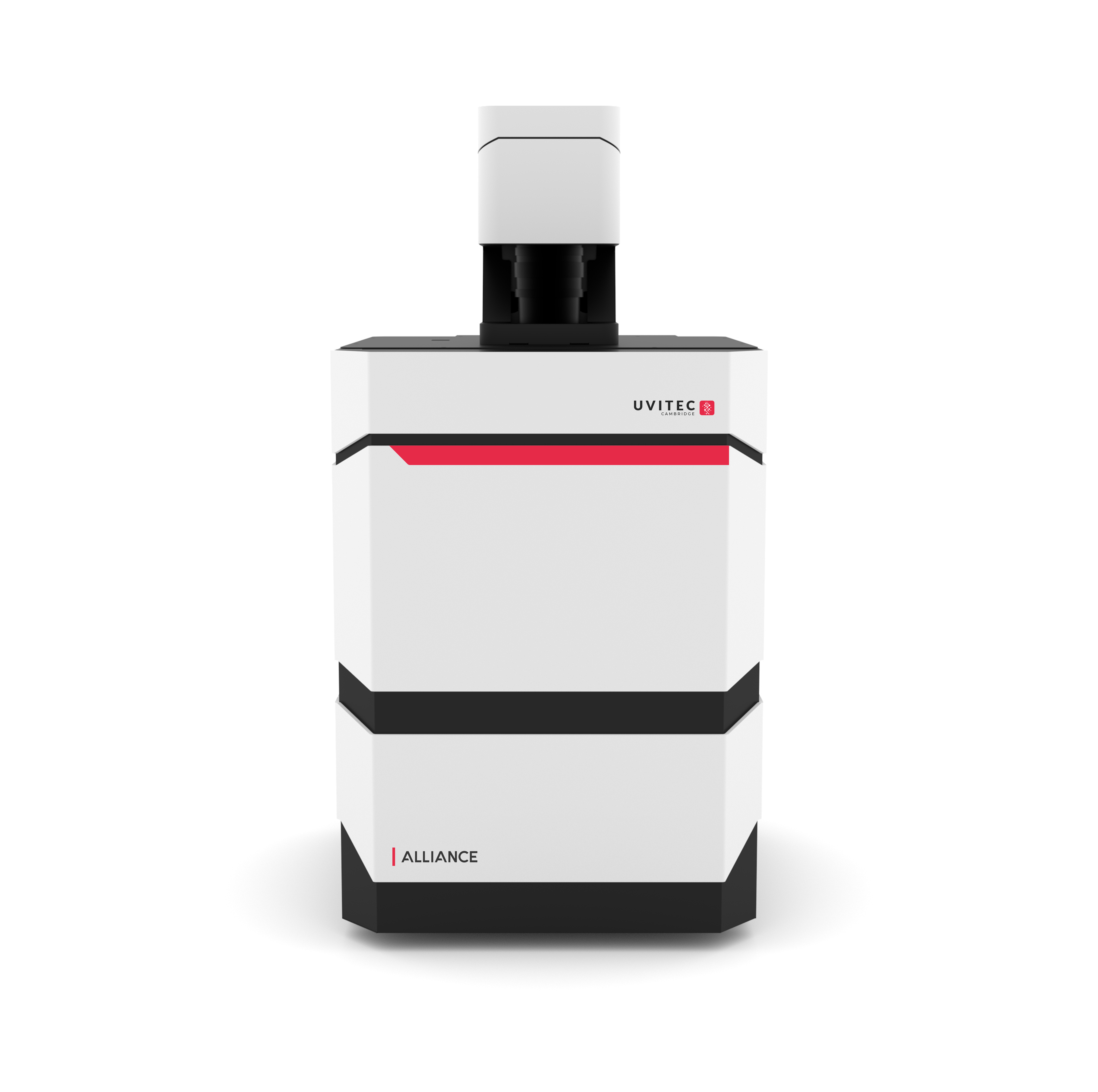

Alliance Q9 Advanced

The Alliance Q9 Advanced is Uvitec’s top-end chemiluminescence and spectral fluorescence imaging system, proudly boasting the highest optics specifications and sensitivity on the market. The Q9 Advanced is fully automated, expandable and tailored to your workflow, upgradeable through plug-n-play technology.

Product Features
  • Fully automated
  • Up to 18-megapixel resolution
  • f/0.80 custom lens
  • -60°C regulated cooling
  • Fully upgradeable
  • Up to 13 illumination sources
  • 7-position motorized wheel
  • Unlimited software users

Confocal Disc 1:24

Watch how the Uvitec emission filters will drastically boost your multiplex fluorescence applications.

Practicality
  • 1-click to image > effortless acquisition, in no time
  • No manual control > hands-off, automated routines
  • Fully slide-out tray > hassle-free sample positioning
  • Mobile sample tray > painless westerns imaging
  • All-in-one > acquisition – editing – analysis, straight away
Applications
  • Femtogram-level > stunning detection of faintest signals
  • Uvipure© technology > enhanced UV for EtBr and all safe stains
  • Chromapure© modules > take multiplexing to the next level
  • Confocal discs > boosted fluorescence signals capture
  • Filters > up to 18 filters to choose from
Optics
  • 9.2 megapixels > massive resolution, HD pictures
  • f/0.80 custom lens > unrivalled camera sensitivity
  • -60°C camera cooling > radical background suppression
  • OD 4.8 dynamic range > outstanding weak/strong detection ratio
  • 65,535 gray levels > research-level protein quantification
Darkroom
  • Stainless steel > long-lasting, robust instrument
  • Box© concept > interchangeable transilluminators
  • Plug-n-play > upgrade any module, at any time
  • 7-position wheel > and up to 18 filters to choose from
  • Q-smart darkroom > splendid Alliance-line darkroom
Chemiluminescence

Western blotting

Chemiluminescent/ECL westerns, dot blots…

Fluorescence

Optional DNA and RNA gels with fluorescent stains

Ethidium Bromide, GelRed, GelGreen, SYBR Safe & Green & Gold, Sypro Ruby, Emerald, Midori Green…

Epi Fluorescence

Optional IR/NIR/RGB multiplexing with up to 8 wavelengths

UV 365nm – TLC plates, Qdots…
Blue 420nm – DyLight 405, CFP, eCFP, Cerulean, Atto 425, Alexa 405…
Blue 460nm – Cy2, GFP, eGFP, FITC, Alexa 488, Sypro, Bodipy, Atto 465, DyLight 488…
Green 520nm – Cy3, Cy3.5, RFP, Alexa 532 & 568, Krypton, Atto 550, DyLight 549…
Red 650nm – Cy5, Alexa 647, Atto 633, DyLight 633, DyLight 649…
Red 690nm – Cy5.5 Atto 680, IRdye 680, Alexa 680 & 700, DyLight 680…
NIR 740nm – Cy7, Alexa 750, DyLight 750…
IR 780nm – IRdye 800, Alexa 790, DyLight 800…

Bioluminescence

In-vivo Luciferase and Fluorescence

Luciferin, fluorescent proteins (GFP, RFP, IRFP…) and stains

Visible Imaging

Optional Colorimetry and Protein gels

Coomassie Blue, Cooper, Silver-stained, Red Ponceau, Petri Dish colonies & colony counting…

Key Advantages
  • Auto-focus > images always crisp, in focus
  • Live-3D mode > unique pre-acquisition tool
  • Serial acquisition > repetitive, incremental, accumulative…
  • Auto add-marker > signal, marker and multiplex images
  • Customizable > all protocols adjustable, endless possibilities
  • Endless editing > countless tools included
  • Analysis > quantification, molecular weight, distances, colonies
  • Compliances > fully GLP and 21-CFR-part-11 compliant
Soft Chemi 3D
Soft Chemi
Datasheet
Q9-Alliance - v18.02
Update Camera - Lens Definition
