Fully customizable Chemidoc imaging platform

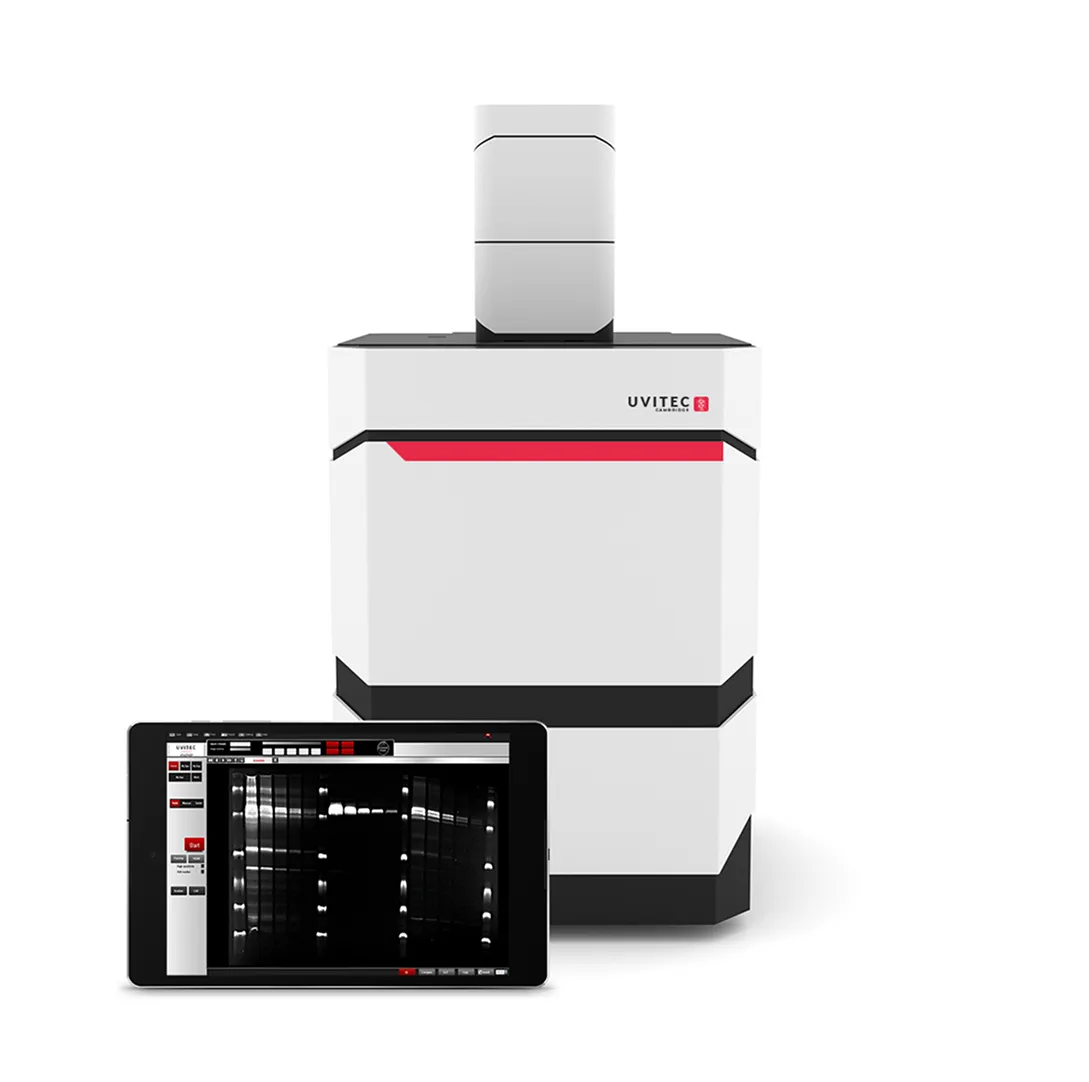

Alliance Q9 Advanced

The Alliance Q9-series is Uvitec’s top-end chemiluminescence and epifluorescence imaging system, proudly boasting the highest optics specifications and sensitivity on the market. The Alliance Q9 Advanced is fully automated, expandable and tailored to your workflow, upgradeable through plug-n-play technology.

Product Features

Fully automated

Up to 18-megapixel resolution

f/0.80 custom lens

-60°C regulated cooling

Fully upgradeable

Optional epifluorescence

7-position motorized wheel

Unlimited software users

GET A QUOTE

Practicality

1-click to image

effortless acquisition, in no time

No manual control

hands-off, automated routines

Fully slide-out tray

hassle-free sample positioning

Mobile sample tray

painless westerns imaging

All-in-one

acquisition – editing – analysis, straight away

Optics

9.2 megapixels

massive resolution, HD pictures

f/0.80 custom lens

unrivalled camera sensitivity

-60°C camera cooling

radical background suppression

OD 4.8 dynamic range

outstanding weak/strong detection ratio

65,535 gray levels

research-level protein quantification

Applications

Femtogram-level

stunning detection of faintest signals

Uvipure© technology

enhanced UV for EtBr and all safe stains

Chromapure© concept

take multiplexing to the next level

Confocal discs

boosted fluorescence signals capture

Filters

up to 18 filters to choose from

Darkroom

Stainless steel

long-lasting, robust instrument

Box© concept

interchangeable transilluminators

Plug-n-play

upgrade any module, at any time

7-position wheel

and up to 18 filters to choose from

Q-smart darkroom

splendid Alliance-line darkroom

Chemiluminescence

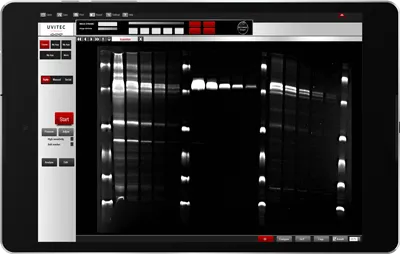

Western blotting

Chemiluminescent/ECL westerns, dot blots...

Fluorescence

Optional DNA and RNA gels with fluorescent stains

Ethidium Bromide, GelRed, GelGreen, SYBR Safe & Green & Gold, Sypro Ruby, Emerald, Midori Green…

Epi Fluorescence

Optional epifluorescence

Atto 425, Alexa 405, Cy2, GFP, eGFP, FITC, Alexa 488, Sypro, Bodipy, Atto 465, DyLight 480, Cy3, Cy3.5, RFP, Alexa 532 & 568, Krypton, Atto 550, DyLight 549, Cy5, Alexa 647, Atto 633, DyLight 633, DyLight 649, Cy5.5 Atto 680, IRdye 680, Alexa 680 & 700, DyLight 680, Cy7, Alexa 750, DyLight 750, IRdye 800, Alexa 790, DyLight 800

Bioluminescence

Bioluminescence, Luciferase and Fluorescence

Luciferin, fluorescent proteins (GFP, RFP, IRFP…) and stains

Visible Imaging

Optional Colorimetry and Protein gels

Coomassie Blue, Cooper, Silver-stained, Red Ponceau, Petri Dish colonies & colony counting…

Key Advantages

Auto-focus

images always crisp, in focus

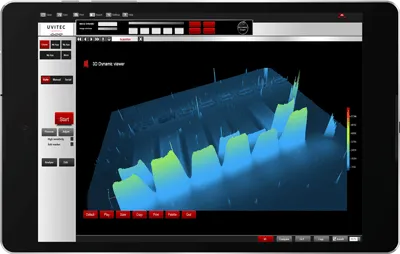

Live-3D mode

unique pre-acquisition tool

Serial acquisition

repetitive, incremental, accumulative…

Auto add-marker

signal, marker and multiplex images

Customizable

all protocols adjustable, endless possibilities

Endless editing

countless tools included

Analysis

quantification, molecular weight, distances, colonies

Compliances

fully GLP and 21-CFR-part-11 compliant

Data Sheet Alliance Q9 Automatic

Download
