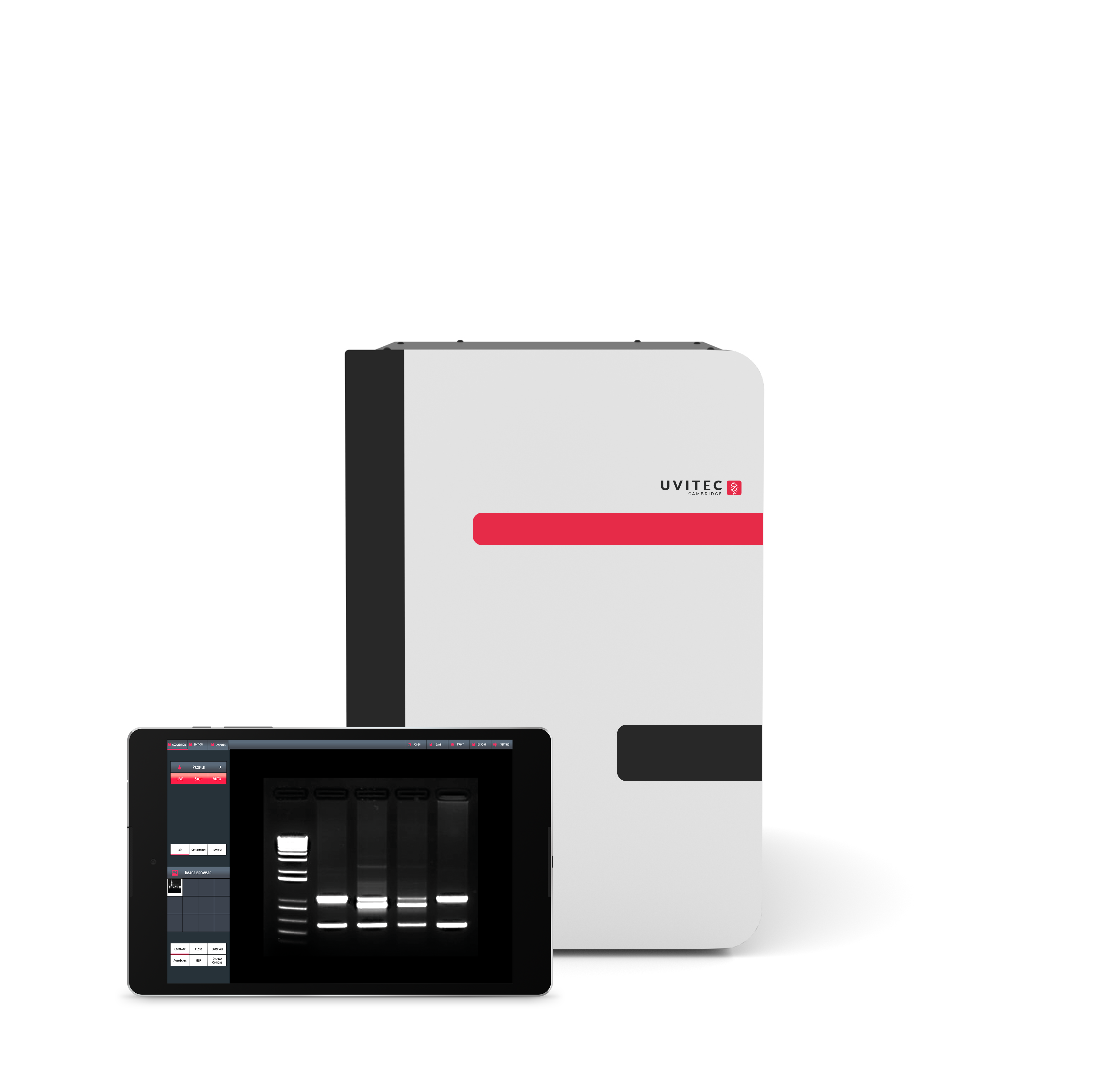

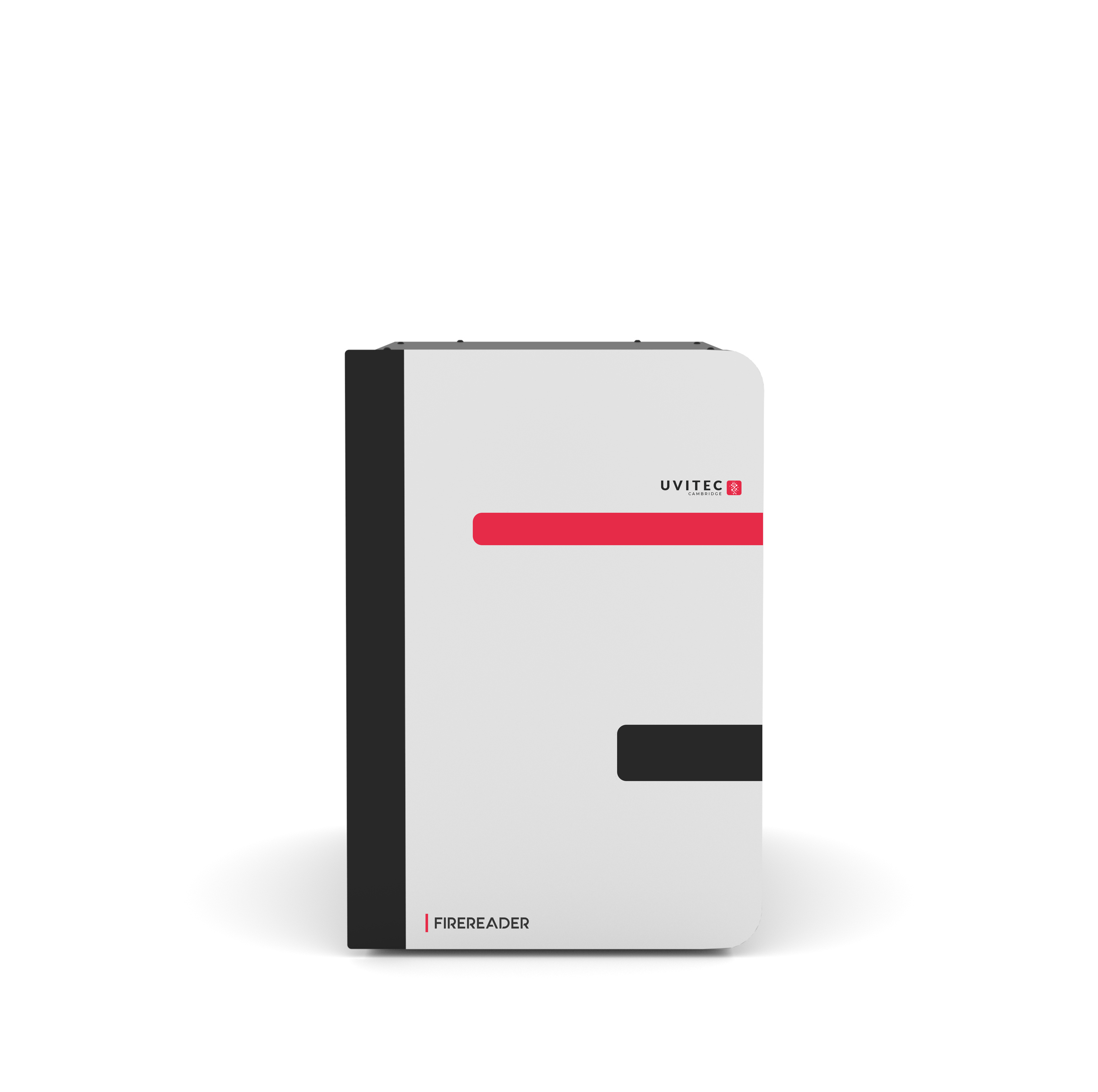

FireReader V10
High-end, multi-applications Geldoc system for DNA & protein gel imaging

FireReader V10

The FireReader V10 is a super-powerful, multi-applications, full imaging platform, offering up to 7 different illuminations and countless possible applications. Boasting huge 6-megapixel sensor, the FireReader geldoc system delivers up to 65,535 gray levels, ideal for publication-level images and research-level data.

Product Features
  • Fully automated
  • Up to 7 illumination sources
  • 65,535 gray levels
  • Up to 10-megapixel resolution
  • No learning curve
  • 6-position filter wheel
  • Stainless-steel made
  • Unlimited software users

UVITEC-1D Software 1:21

Watch Uvitec’s user-friendliest software in action, through image acquisition and analysis.

Practicality
  • 1-click to image > effortless acquisition, in no time
  • No manual control > hands-off, automated routines
  • Fully slide-out tray > hassle-free sample positioning
  • All-in-one > acquisition – editing – analysis, straight away
Applications
  • Uvipure© technology > enhanced UV for EtBr and all safe stains
  • Epi blue light > cover more apps such as GFP, eGFP, Cy2, FITC
  • Quantitative analysis > against one or several band(s) of reference
  • Fully-customizable > 100% adjustable parameters and protocols
Optics
  • 6,000,000 pixels > superb, publication-level images
  • 65,535 gray levels > research-level protein quantification
  • 6x zoom lens > responsive optics for a versatile imaging area
  • Passive cooling > reduced noise for clearer images
Darkroom
  • Stainless steel > long-lasting, robust instrument
  • Customizable > large choice of transilluminators
  • 6-position wheel > and up to 18 filters to choose from
  • Compact design > small footprints and easy fit
Fluorescence

DNA and RNA gels with fluorescent stains

Ethidium Bromide, GelRed, GelGreen, SYBR Safe & Green & Gold, Sypro Ruby, Emerald, Midori Green…

Epi Fluorescence

Epi blue LED illumination

Gels and blots with GFP, eGFP, Cy2, Alexa 488, FITC, Atto 465, DyLight 488…

Optional Epi dual-UV 254 & 365nm illumination

TLC plates, Qdots…

Visible Imaging

Optional Colorimetry and Protein gels

Coomassie Blue, Cooper, Silver-stained, Red Ponceau, Petri Dish colonies & colony counting…

Key Advantages
  • Auto-focus > mages always crisp, in focus
  • Live-3D mode > unique pre-acquisition tool
  • Customizable > all protocols adjustable, endless possibilities
  • Endless editing > countless tools included
  • Analysis > quantification, molecular weight, distances, colonies
  • Compliances > fully GLP and 21-CFR-part-11 compliant
Soft Geldoc 3D
Soft Geldoc
Datasheet
Uvitec-1D - v18.01
EXCLUSIVELY for Geldoc systems supplied from April 2018 on
Uvitec-1D - v17.08.b
EXCLUSIVELY for Geldoc systems supplied from January 2017 to March 2018
