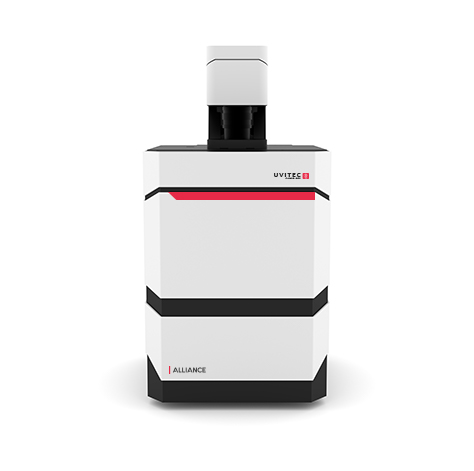

Alliance Q9 Mini Align

Alliance Q9 Mini

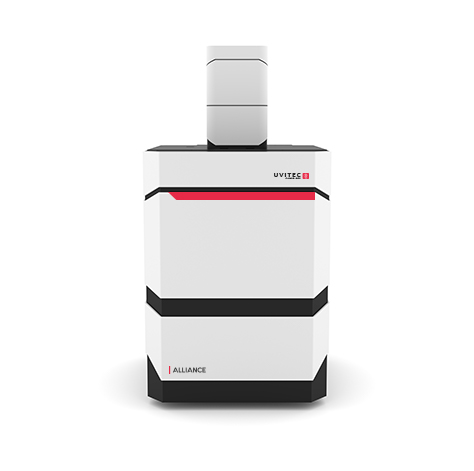

Alliance Q9 Advanced Align

Alliance Q9 Advanced

Alliance Q9 Touch Align

Alliance Q9 Touch

Type

Computer-based

Computer-based

Coming Soon

Optics

9.2 megapixel native
18 megapixels extended
65,535 gray levels

f/0.80, panoramic lens
24x20cm FOV
Auto-lighting & exposure
Pre-calibrated optics

9.2 megapixel native
18 megapixels extended
65,535 gray levels

f/0.80, panoramic lens
24x20cm FOV
Auto-lighting & exposure
Fully-motorized optics

Transilluminations

Transilluminator choice:
26M, 26MX, 20LM, 20LMX, 20B, 20W

Uvipure available
Intechangeable

Transilluminator choice:
26M, 26MX, 20LM, 20LMX, 20B, 20W

Uvipure available
Intechangeable

Default Illuminations

Chemiluminescence
Epi white

Chemiluminescence
Epi white

Optional Illuminations

Chroma UV 365nm
Chroma Blue 420nm
Chroma Blue 460nm
Chroma Green 520nm
Chroma Red 650nm
Chroma NIR 690nm
Chroma NIR 740nm
Chroma IR 780nm

Trans-white (conversion screen)
Trans-blue (conversion screen)

Chroma UV 365nm
Chroma Blue 420nm
Chroma Blue 460nm
Chroma Green 520nm
Chroma Red 650nm
Chroma NIR 690nm
Chroma NIR 740nm
Chroma IR 780nm

Trans-white (conversion screen)
Trans-blue (conversion screen)

Chemiluminescence & Boluminescence

ECL western blots, dot blots…
Luciferase/Luciferin in-vivo

ECL western blots, dot blots…
Luciferase/Luciferin in-vivo

Optional DNA/RNA Gels

Ethidium Bromide
Safe stains: SYBR Green, GelRed, GelGreen, SYBR Safe, SYBR Gold, Sypro Ruby, Emerald, Midori Green…

Ethidium Bromide
Safe stains: SYBR Green, GelRed, GelGreen, SYBR Safe, SYBR Gold, Sypro Ruby, Emerald, Midori Green…

Optional Protein Gels

Coomassie, Silver, Cooper…
Red Ponceau
Stain-free enable

Coomassie, Silver, Cooper…
Red Ponceau
Stain-free enable

Optional Epi Fluorescence

DyLight 405, CFP, eCFP, Cerulean, Atto 425, Alexa 405…

Cy2, GFP, eGFP, FITC, Alexa 488, Sypro, Bodipy, Atto 465, DyLight 488…

Cy3, Cy3.5, RFP, Alexa 532 & 568, Krypton, Atto 550, DyLight 549…

Cy5, Alexa 647, Atto 633, DyLight 633, DyLight 649…

Cy5.5 Atto 680, IRdye 680, Alexa 680 & 700, DyLight 680…

Cy7, Alexa 750, DyLight 750…

IRdye 800, Alexa 790, DyLight 800…

DyLight 405, CFP, eCFP, Cerulean, Atto 425, Alexa 405…

Cy2, GFP, eGFP, FITC, Alexa 488, Sypro, Bodipy, Atto 465, DyLight 488…

Cy3, Cy3.5, RFP, Alexa 532 & 568, Krypton, Atto 550, DyLight 549…

Cy5, Alexa 647, Atto 633, DyLight 633, DyLight 649…

Cy5.5 Atto 680, IRdye 680, Alexa 680 & 700, DyLight 680…

Cy7, Alexa 750, DyLight 750…

IRdye 800, Alexa 790, DyLight 800…

Optional Epi-UV

TLC plates, Qdots

TLC plates, Qdots

Optional Colonies

Petri Dish plates
GFP colonies

Petri Dish plates
GFP colonies

Optional Animal Imaging

Bioluminescence in-vivo (Luciferase/Luciferin)
Fluorescence in-vivo (fluorescent proteins & dyes)

Bioluminescence in-vivo (Luciferase/Luciferin)
Fluorescence in-vivo (fluorescent proteins & dyes)
